OUR SERVICES

We push boundaries and deliver the inspection capabilities you need.

0
Global Clients
0
Years of Experience
DOWNLOAD OUR BROCHURE
ISO/IEC 17025:2017 Dimensional Calibration
ISO/IEC 17025:2017 Dimensional Accreditation
ITAR REGISTERED & COMPLIANT
ASNT & NAS410 Certified
0
NIST TRACEABLE DEVICES
0
Completed Projects

11 COORDINATE MEASURING MACHINES (CMMs)

zeiss-contura-2019.ts-1556807371038
cmm-2
largefixturesdw
  • Eleven CMMs
  • PC-DMIS
  • CALYPSO
  • Dimensional Layouts
  • FAI & PPAP
  • Fixture Certifications
  • Capability Studies
  • Gauge R & R studies
  • PC-DMIS training

INDUSTRIAL X-RAY & CT SCANNING

nikon-metrology-xray-ct-computed-tomography-xth225

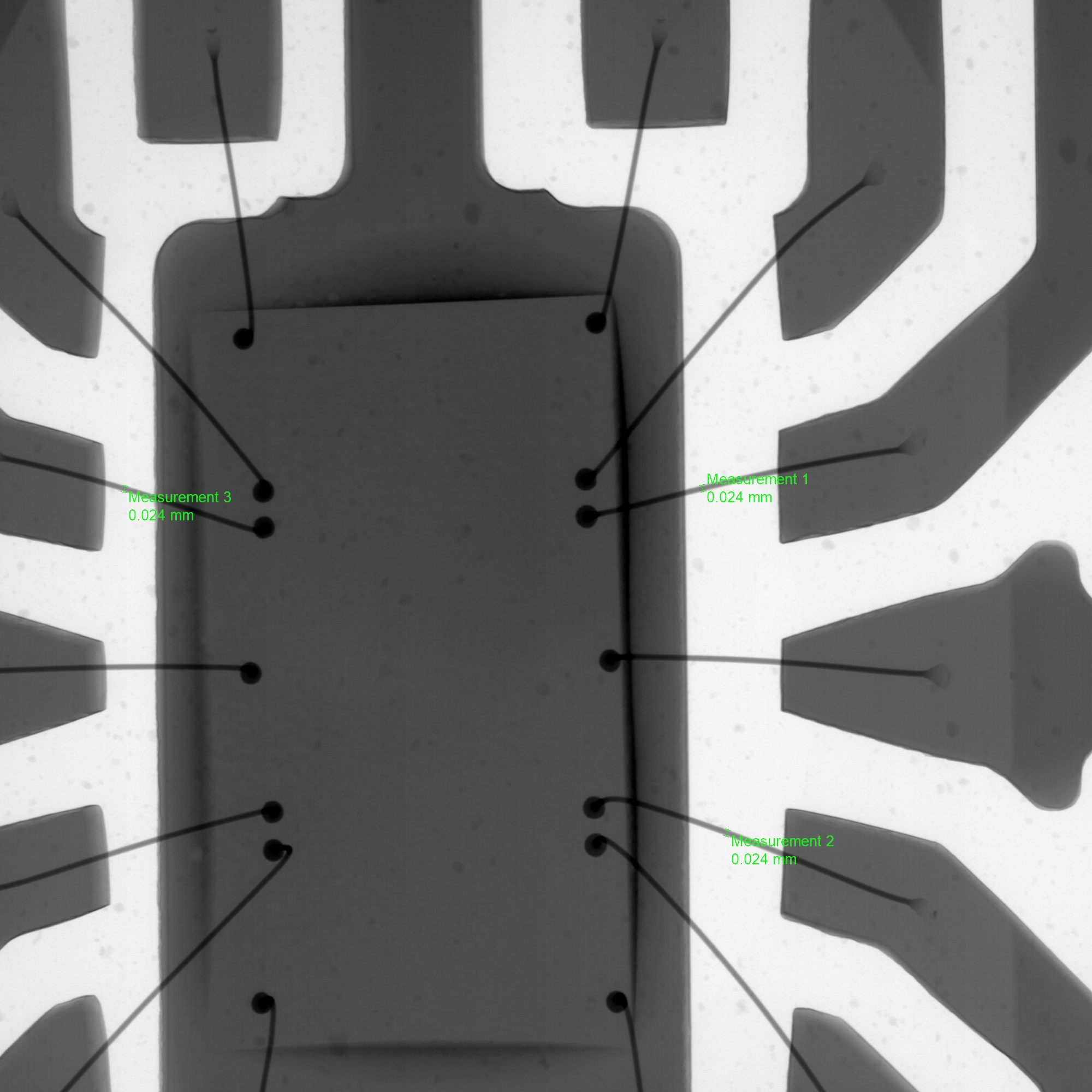

dxr-microchip-bond-wire-resolution-jpeg-reduced
slice-2
  • 225kV & 450kV Systems – low to high energy penetration
  • Large cabinet & vault for any measuring capacities
  • Volume Graphics MAX, industry leading software
  • Non-Destructive testing
  • Porosity & Inclusion Anlaysis
  • Fault Detection
  • Assembly Inspection
  • Geometric Analysis

STRUCTURED LIGHT & LASER SCANNING

ZEISS SCANNERS

zeiss-comet-l3d

PORTABLE SCAN ARMS

as1-on-arm_800x428

CAPABILITIES

demo-wheel-1
  • Two Zeiss Blue Light Scanners
  • PolyWorks Inspection software
  • Dimensional Layouts
  • Part to Part comparison studies
  • 3D CAD Surfacing: Reverse Engineering
  • Model, Tool & Die Analysis
  • On-site Scanning
  • PolyWorks Training

2D VISION SERVICES

main_img_1112
xray-ct-vision
circuitboard-2
  • High magnification imaging
  • High accuracy measurements
  • Non-contact
  • Programmable and repeatable

HAND MEASUREMENT TOOLS

OPTICAL COMPARATOR

comparator

HEIGHT GAUGES

heightstand

PROFILOMETER

profilometer1
  • Optical Comparator
  • Modular Fixturing
  • Gauges – Pins, Blocks, Angles, Radius
  • Height Gauges
  • Calipers
  • Micrometers
  • Profilometer
  • Laser Temperature Gauge

[ISO/IEC 17025:2017 Dimensional Calibration]

[ISO/IEC 17025:2017 Dimensional Accreditation]

[NAS-410 NDT Certification]

[ASNT NDT Level III Certification for RT/CT]

[ITAR REGISTERED & COMPLIANT]

© HAVEN METROLOGY, 2023.
Serving clients across the globe, Haven Metrology is an ISO/IEC 17025:2017 accredited, ASNT & NAS410 certified, and ITAR registered and compliant contract inspection lab using CMMs with PC-DMIS & Calypso, 3D Scanning with PolyWorks, Industrial CT Computed Tomography & X-Ray Radiography with Volume Graphics, Reverse Engineering with Geomagic Design X, High Accuracy Vision services, and a wide variety of hand measurement tools.
